Track lighting

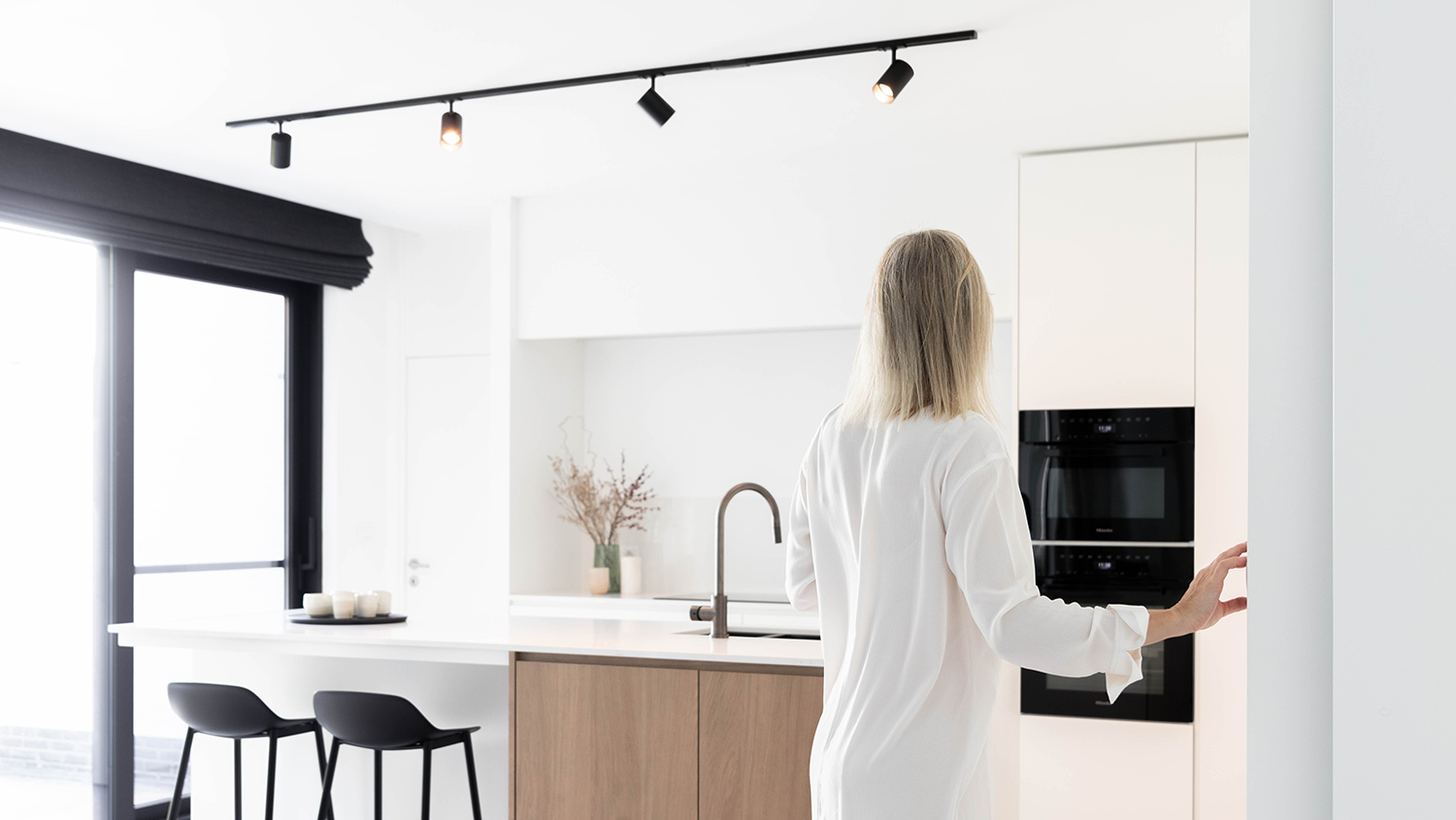

Track lighting is a hugely flexible modular lighting system that allows you to easily illuminate several areas with just a single electrical point of connection. A sequence of tracks is configured from this point of connection. The tracks can be connected in a straight line, at an angle or as a T-junction. This means every corner of the space can be illuminated.
No cutting or chasing in required, as the tracks are mounted on the ceiling. The tracks can also be fitted with a pendant - useful for very high or uneven ceilings. The tracks can take as many spots as you want and each can be angled individually. It means important areas can be illuminated, such as a dining table, kitchen worktop, TV corner, painting or artwork. The possibilities are endless. Different light fitting can be attached to the track, such as pendants, using a connector.
Track lighting suits any interior, from industrial to very minimalist.
Let’s get started! Configure your single-phase track lighting!
We recommend that you make a sketch of the configuration you want. To do this, it is handy to know exactly what components make up track lighting.
Step 1: Choose your track and power supply
Each track measures 143 cm without spacers or end cap. One end cap is fitted to the end of a configuration. This end cap is included as standard and should not be ordered separately. A track can be shortened to a size of your choice using a hacksaw.
Step 2: Connect the tracks using connectors
This second step describes how to connect the rails with the connectors. The most common connectors are ‘straight’ or L-shaped. A ‘straight’ connector is used to connect two tracks in a straight line. This connector will increase your configuration by 0.5 cm. Use L-shape connectors for creating a 90-degree corner to the left or to the right. There are two types of L-shape connectors: outside & inside. An L-shape connector adds 7 cm on each side of your configuration. At last you can also use a T- split connector.
Step 3: Choose the number of spots and/or adaptors

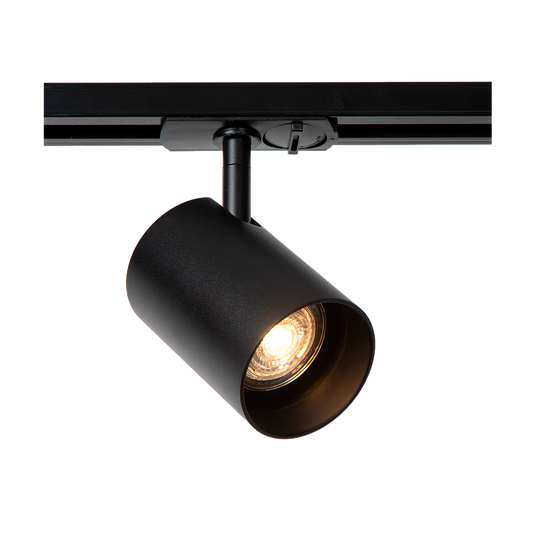

Spots can be added to a track. The spots require GU10 light bulbs (not included). This always depends on the desired brightness and whether or not they should have a dimmer function. The spotlight has a diameter of 6.5 cm and is 10 cm high. Are you looking to add a pendant to a track? This is possible with the use of an adaptor. The adaptor is clicked onto the rail. First, the pendant’s power cable must be connected to the adaptor. For this reason, our adapters do not come with a separate cable. Please note there is a restriction on the light fitting’s weight.
On the right track: do it yourself
-
Unboxing
We will show you how to unbox and install track lighting in your home or office. Track lighting is a versatile and customizable way to illuminate any space with style and functionality.
-
Instruction

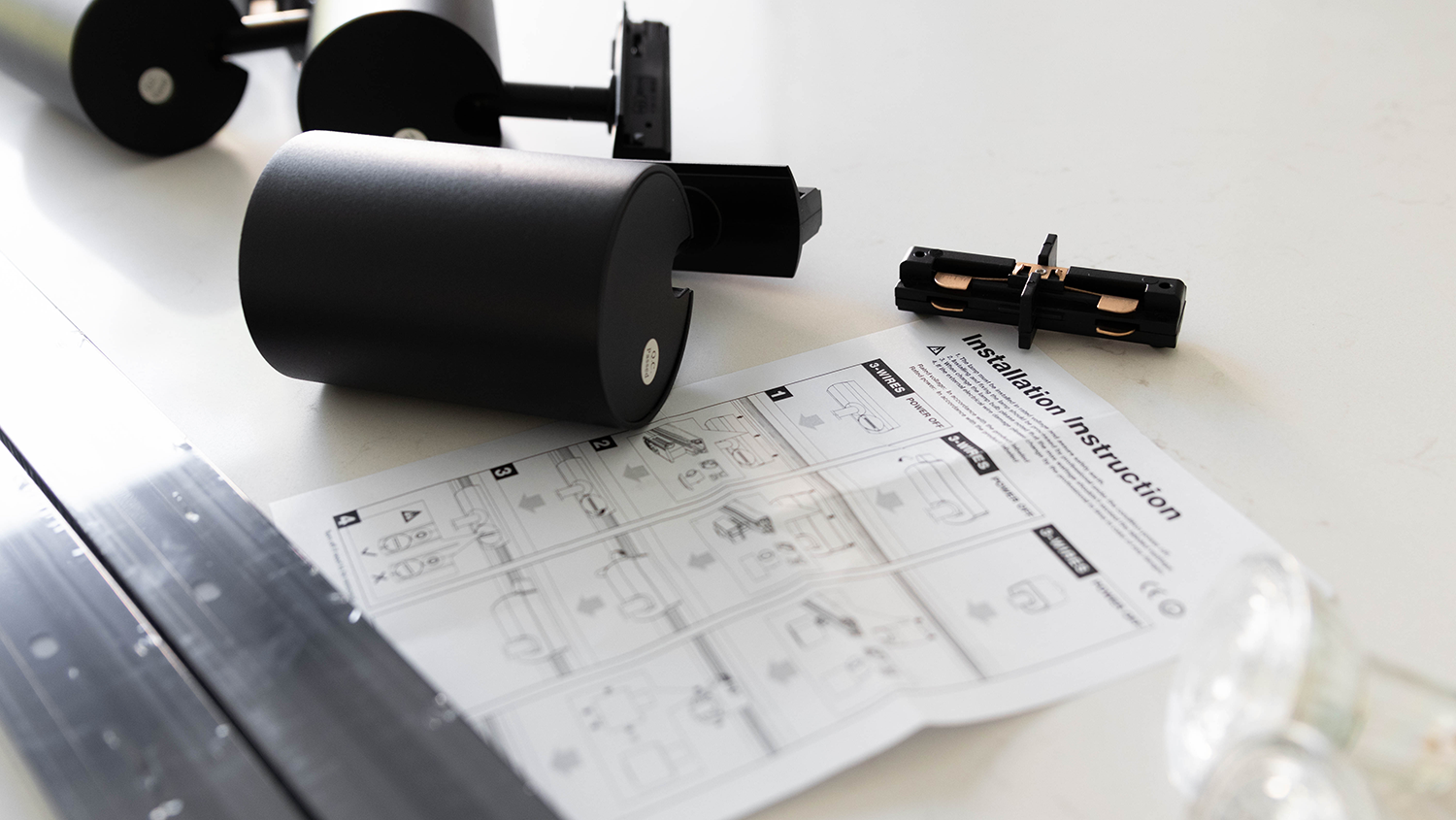

Installing track lighting is not very difficult, but it does require some basic electrical skills and tools. You will need a few hours of your time to complete this project.
-
Preparation

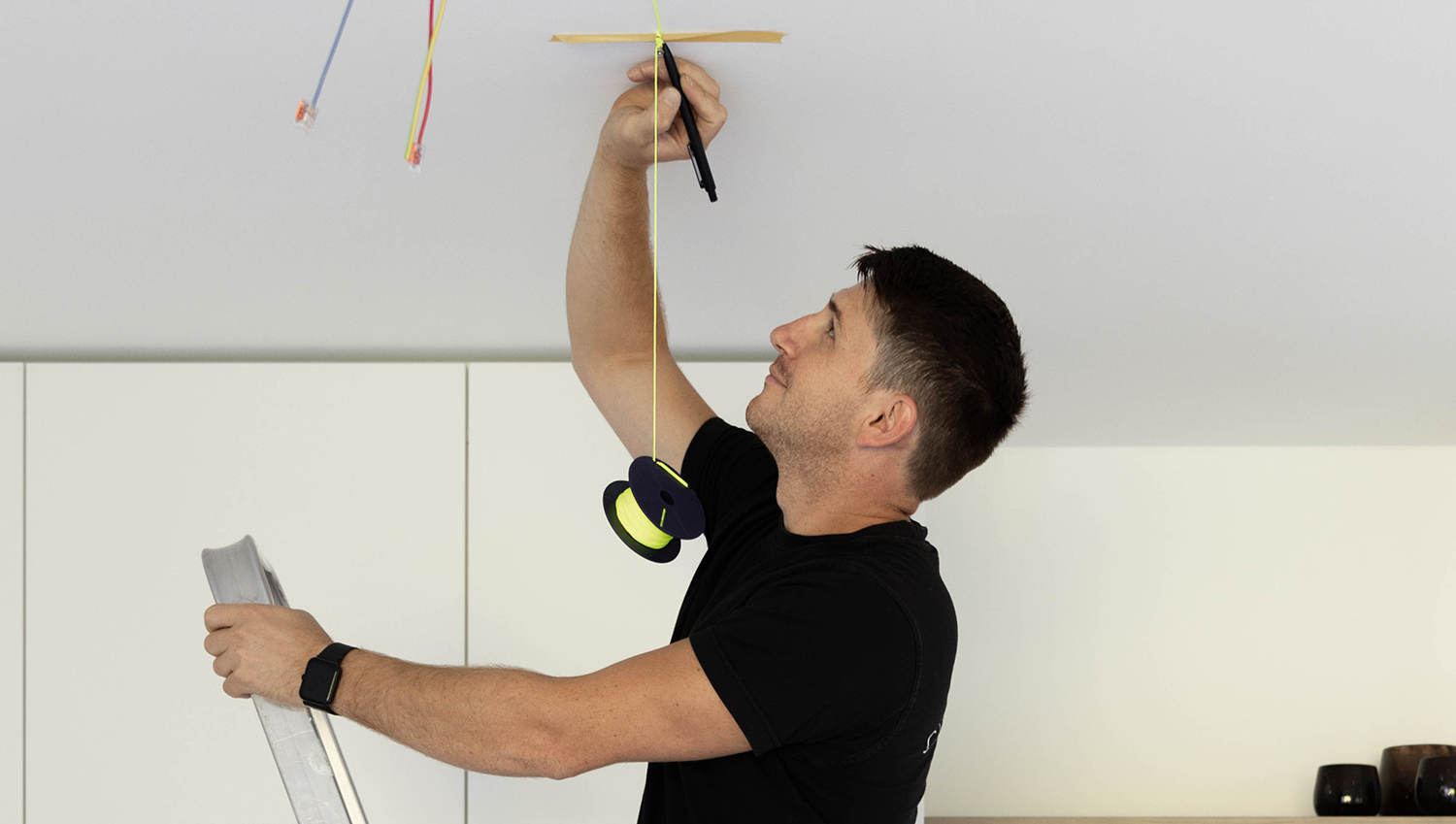

Choose a location and layout for your track. Make sure the track is long enough to cover the area you want to light up, and that it has enough fixtures for your needs. Mark the position of the track with a pencil. Use a level to make sure it is straight and aligned with the rest of the room.
-
Installation

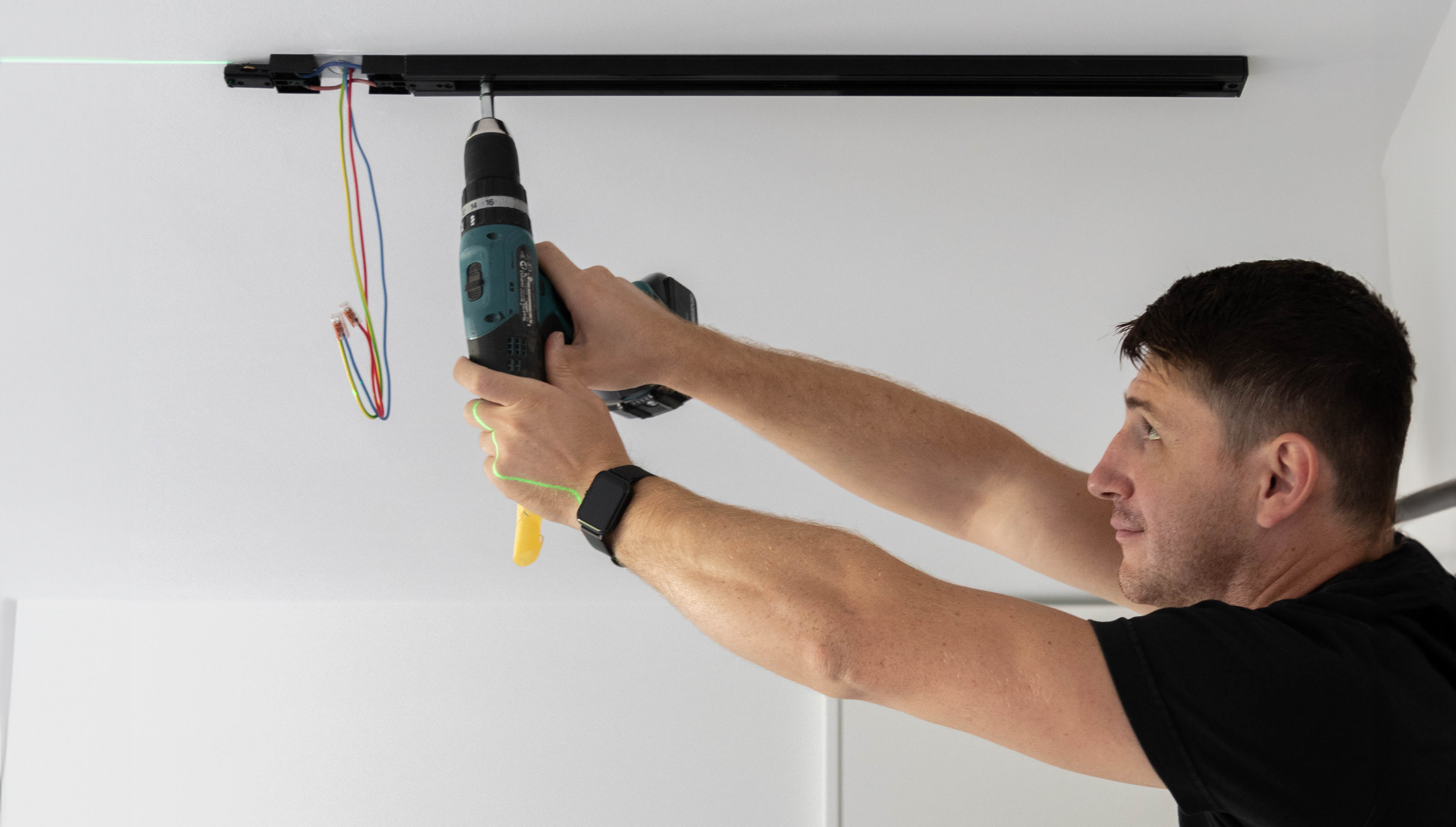

Drill pilot holes for the mounting screws along the track. Use anchors if you are drilling into drywall or plaster. Attach the track to the ceiling with the attached screws. Make sure it is secure and stable. Connect the wires from the track to the wires from the ceiling.
-
Finishing touch

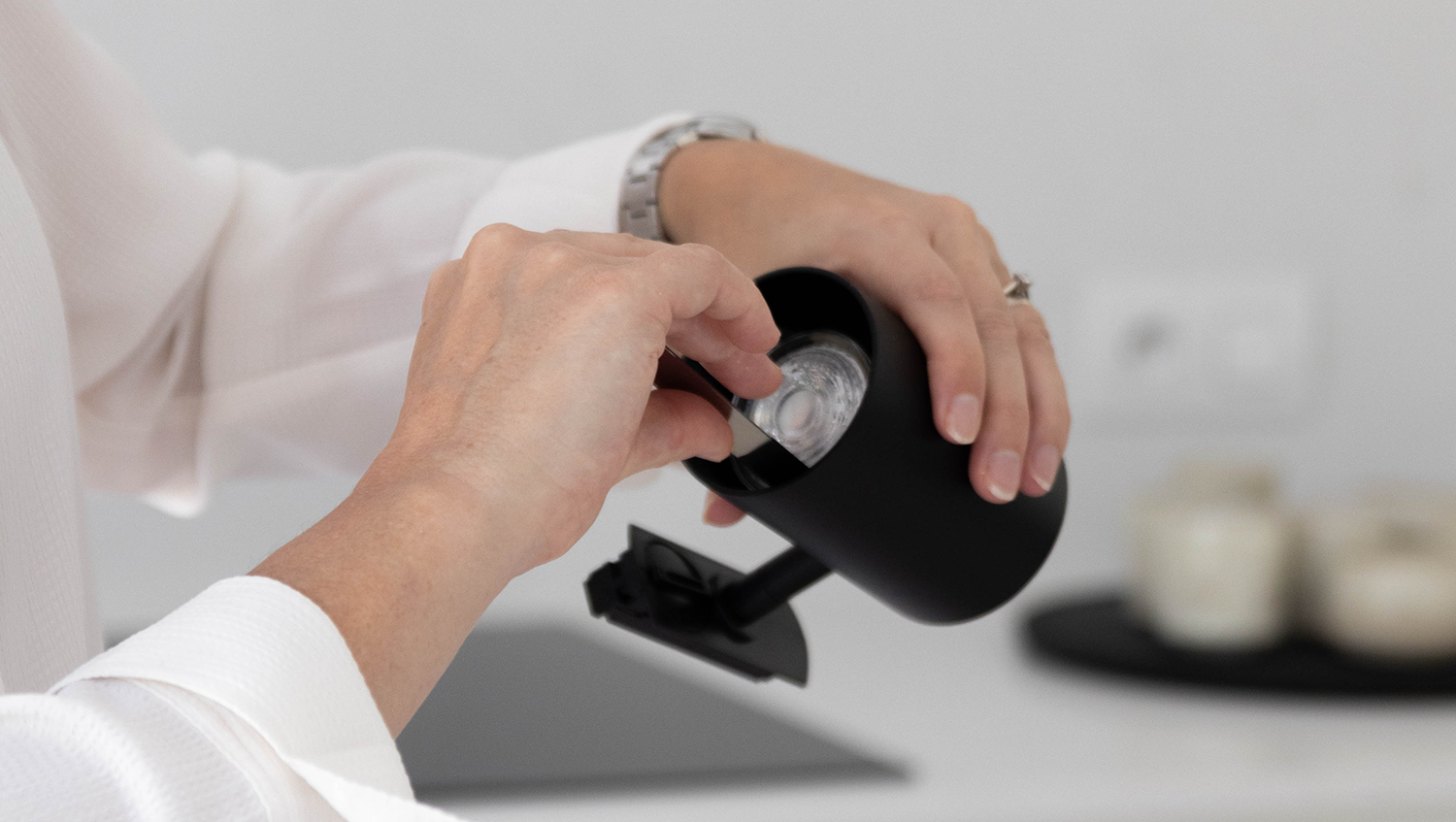

Install the light fixtures on the track. The fixtures should have connectors that snap into the track. You can slide them along the track and adjust them to point in any direction you want. You can also choose our adaptor Lex to add a pendant light.
-
Final result

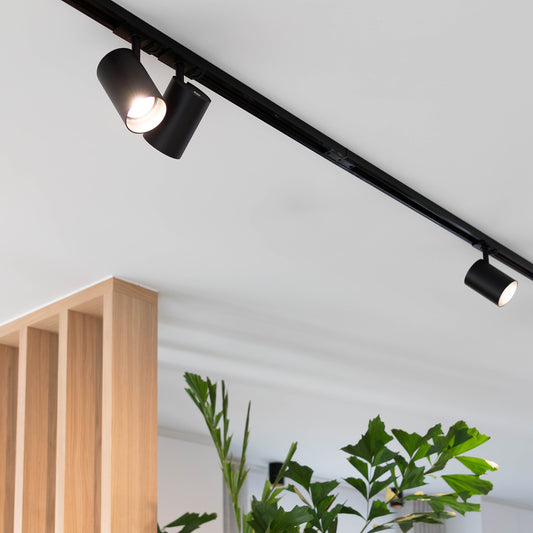

Turn on the power and test your track lighting. Enjoy your new lighting system from Atmooz. You can always adjust to direct the light where you want it.
